Fortinet FortiGate

This documentation is based on FortiGate 5.4.3 documentation using web-based manager and CLI. For different version of FortiGate or missing information, refer to FortiGate user guides.


Configuration via Web-Based Manager

Enabling ICAP feature

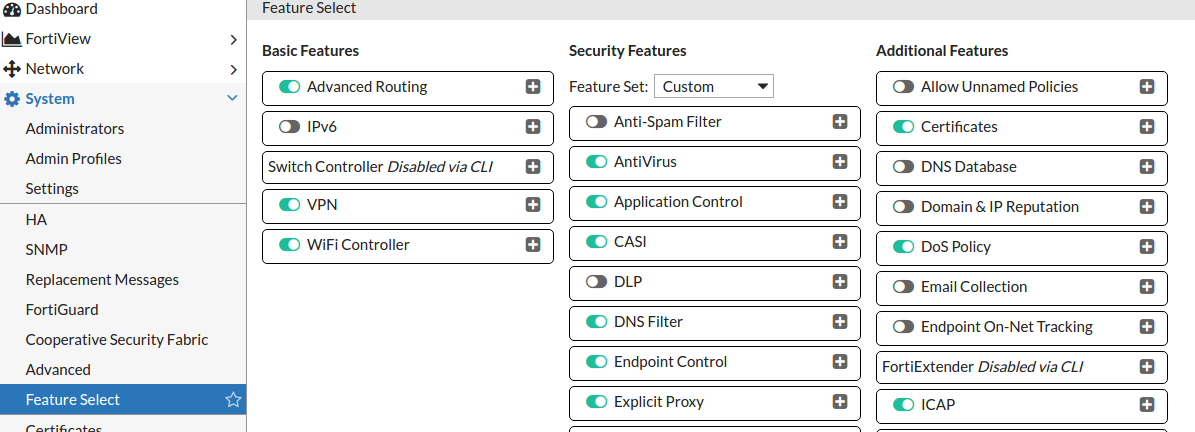

ICAP does not appear by default in the web-based manager, it has to be enabled by going to System → Feature Select and enabling ICAP. You may need to refresh the page in order to see the changes.


Adding ICAP server and profile

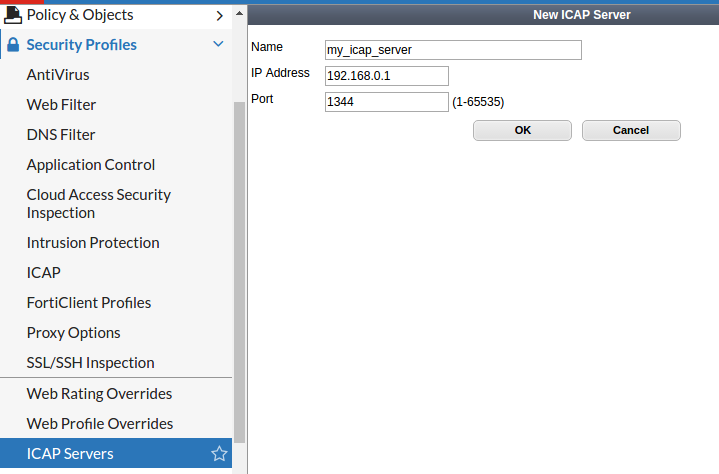

  1. Add ICAP server
    1. Select Security Profiles → ICAP Servers.
    2. Create new or edit an existing entry.
      1. The Hostname or IP address, and port, should be the ones used by the Shield ICAP instance

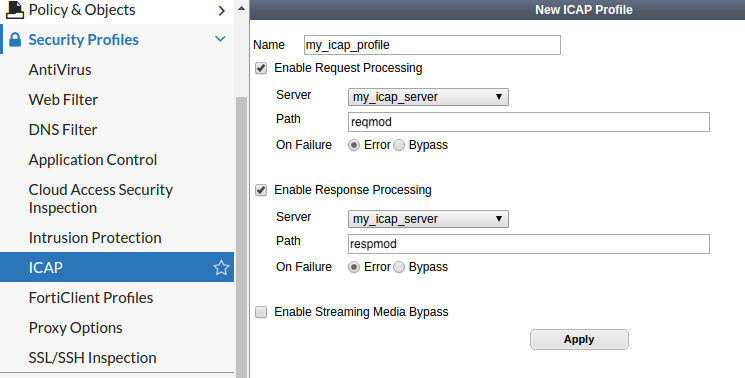

  1. Add ICAP profile
    1. Select Security Profiles → ICAP.
    2. Create new or edit an existing entry.
    3. Select the 'Enable Request Processing' check-box, select your server's name from the drop-down list and in the 'Path' field, type in 'reqmod'.
    4. Select the 'Enable Response Processing' check-box, select your server's name from the drop-down list and in the 'Path' field, type in 'respmod'.
    5. Apply the changes.

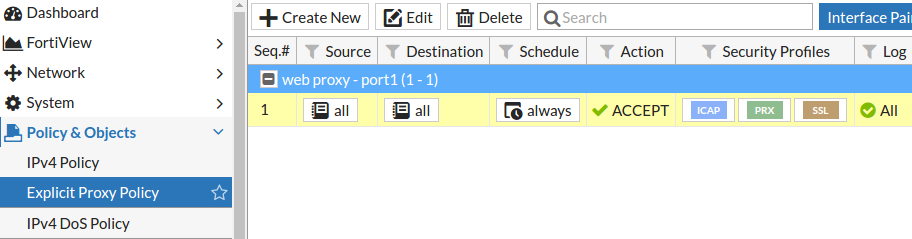

  1. Apply the ICAP profile in your policy/policies
    1. Select Policy&Objects → IPv4 Policy | Explicit Proxy Policy.
    2. Create new or edit an existing policy

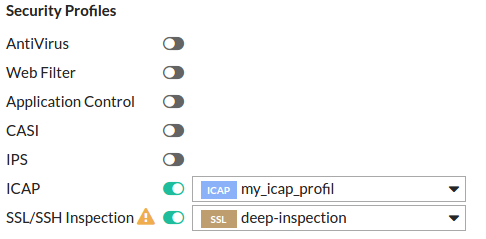

    3. In the section 'Security Profiles', switch on ICAP and select the previously created profile.


Configuration via CLI

  1. Add ICAP server
Add ICAP server via CLI

config icap server
    edit <icap_server_name>
        set ip-version {4 | 6} [default: 4]
        set ip-address <server_ipv4>
        set ip6-address <server_ipv6>
        set max-connections <int> [default: 100]
        set port <port_int> [default: 1344]
    end

The example shown above in the web-based manager would look like this in the CLI:

Add concrate ICAP server via CLI

config icap server
    edit my_icap_server
        set ip-address 172.16.201.36
    end
  1. Add ICAP profile
Add ICAP profile via CLI

config icap profile
    edit <icap_profile_name>
        set replacemsg-group <grp_name>
        set request {enable | disable}
        [The following commands are enabled if request is set to 'enable']
            set request-failure {error | bypass}
            set request-path <path>
            set request-server <icap_server>
        set response {enable | disable}
        [The following commands are enabled if response is set to 'enable']
            set response-failure {error | bypass}
            set response-path <path>
            set response-server <icap_server>
        set streaming-content-bypass {enable | disable}
    end

The example shown above in the web-based manager would look like this in the CLI:

Add concrate ICAP profile via CLI

config icap profile
    edit my_icap_profile
        set request enable
        set request-failure error
        set request-path reqmod
        set request-server my_icap_server
        set response enable
        set response-failure error
        set response-path respmod
        set response-server my_icap_server
        set streaming-content-bypass disable
    end
  1. Apply the ICAP profile policy (policy can be replaced by explicit-proxy-policy when setting ICAP for an Explicit Proxy Policy)
Apply ICAP profile via CLI

config firewall policy [or policy6 if IPv6 is used]
    edit <index_int>
        set icap-profile <icap_profile_name>
    end

The example shown above in the web-based manager would look like this in the CLI:

Apply concrate ICAP profile via CLI

config firewall policy
    edit 1
        set icap-profile my_icap_profile
    end

If you want to disable the ICAP profile for a given policy you should write

Disable ICAP profile via CLI

config firewall policy [or policy6 if IPv6 is used]
    edit <index_int>
        set icap-profile ""
    end

Scanning HTTPS content

To be able to inspect and scan SSL/SSH traffic you have to enable it in Fortigate. After enabling this option you should download the certificate used by Fortigate and install/import it to the browsers which communicate with Fortigate. Otherwise you might see SSL/security related notifications or errors, or even not working web pages.

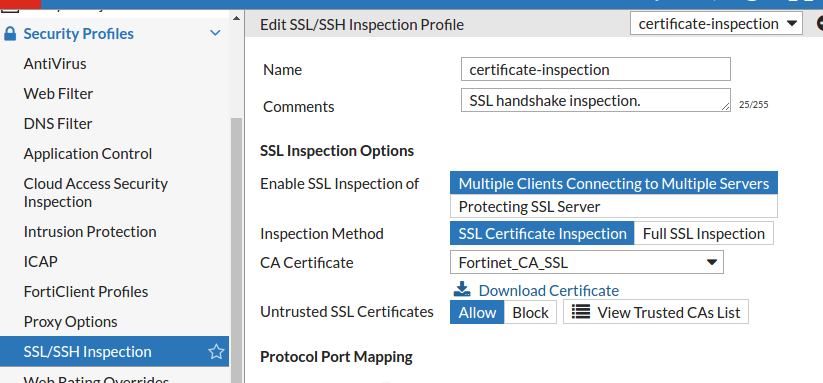

The certificate can be downloaded under Security Profiles→ SSL/SSH Inspection


Enable SSL interception via GUI

  1. Navigate to Policy&Objects and select the policy you would like to enable SSL interception to (for example an Explicit Proxy Policy)


  1. In the Edit page of the selected policy locate the Security Profiles section
  2. Turn SSL/SSH Inspection on and set it to deep-inspection


Enable SSL inspection via CLI

The steps shown above would like this via CLI:

Apply deep ssl inspection to an Explicit Proxy Policy

config firewall explicit-proxy-policy
    edit 1
        set ssl-ssh-profile deep-inspection
    end
